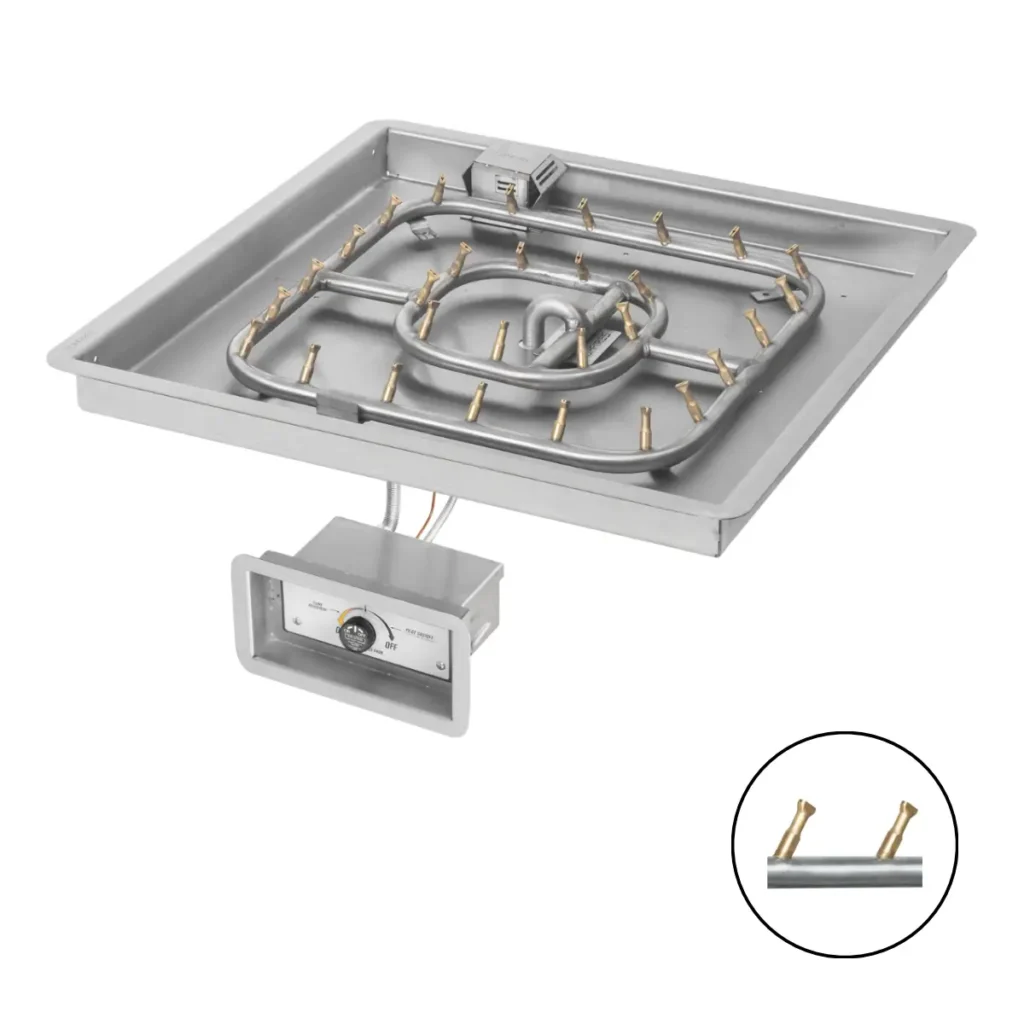

Match Lit Flame Sensing Square Drop In Fire Pit Kit with Bullet Burner
Match Lit Flame Sensing Square Drop In Fire Pit Kit with Bullet Burner
The ease of installing Drop-In Pans, coupled with the convenience of Match-Lit Ignition and the security of a Flame-Sensing safety feature, makes these kits a sought-after option. The Flame-Sensing system will shut down the gas flow to the burner if the flame extinguishes, offering valuable peace of mind.
The stainless steel square bullet burner delivers the same high performance as the all-brass version, featuring a lifetime warranty and the new Aqua Guard design for enhanced weather resistance.
A recessed panel with a face plate houses the valve box, simplifying installation and ensuring a polished, professional finish.
Features
- Match Lit Ignition
- Flame-Sensing Technology
- Protective Gas Valve Box with accessible Control Panel
- Adjustable Flame Height via the Control Panel
- Patented Bullet Burner® Technology
- Patented Aqua Guard Technology
- Lifetime Warranty on the Burner
- LC Certified
Options
Select Size
Three sizes are available: A 12″ x 12″ and an 18″ x 18″ with single-ring burners, and a 24″ x 24″ with a double-ring burner.
Select Gas Type
The kits are available with options for use with natural gas or propane. Be sure to select the correct one for your setup; they are not interchangeable.
Match Lit Flame Sensing Square Drop In Fire Pit Kit with Bullet Burner Specifications
The Pan is crafted from high-quality .304 Stainless Steel and is fitted with a Stainless Steel Square Bullet Burner of the same high-quality. The burner’s bullet tips remain Brass for enhanced performance.
The size refers to the internal diameter of the pan, excluding the 1″ lip. The pan is 2.5″ deep.
Dimensions and BTU Ratings
- Size 12″ x 12″ with 8″ x 8″ Single-Ring Burner rated at 80,000 BTUs – 1/2″ Gas Inlet
- Size 18″ x 18″ with 12″ x 12″ Single-Ring Burner rated at 120,000 BTUs – 1/2″ Gas Inlet
- Size 24″ x 24″ with 18″ x 18″ Double-Ring Burner rated at 280,000 BTUs – 1/2″ Gas Inlet
Warranty
- Stainless Steel Pans: Commercial – 1 Year | Residential – 5 Years
- Bullet Burners are supplied with a Lifetime Warranty
- Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months | Residential – 1 Year
Installation
Drop-In Pans are designed to simply “drop” into a pre-cut opening in your fire pit structure. The insert’s lip or flange provides support and frames the burn area.
Match Lit Flame Sensing Square Drop In Fire Pit Kit with Bullet Burner Operation
- To Light: Simultaneously press the valve control knob and use a lit taper or kitchen lighter to ignite the pilot flame. Keep the valve control knob open for another 20 seconds or so. Turn the control knob to the ON position to light the main burner.
- Flame Adjustment: The flame height can be adjusted using the valve control knob.
- Shut Down: Turn control knob to the “OFF” position.
