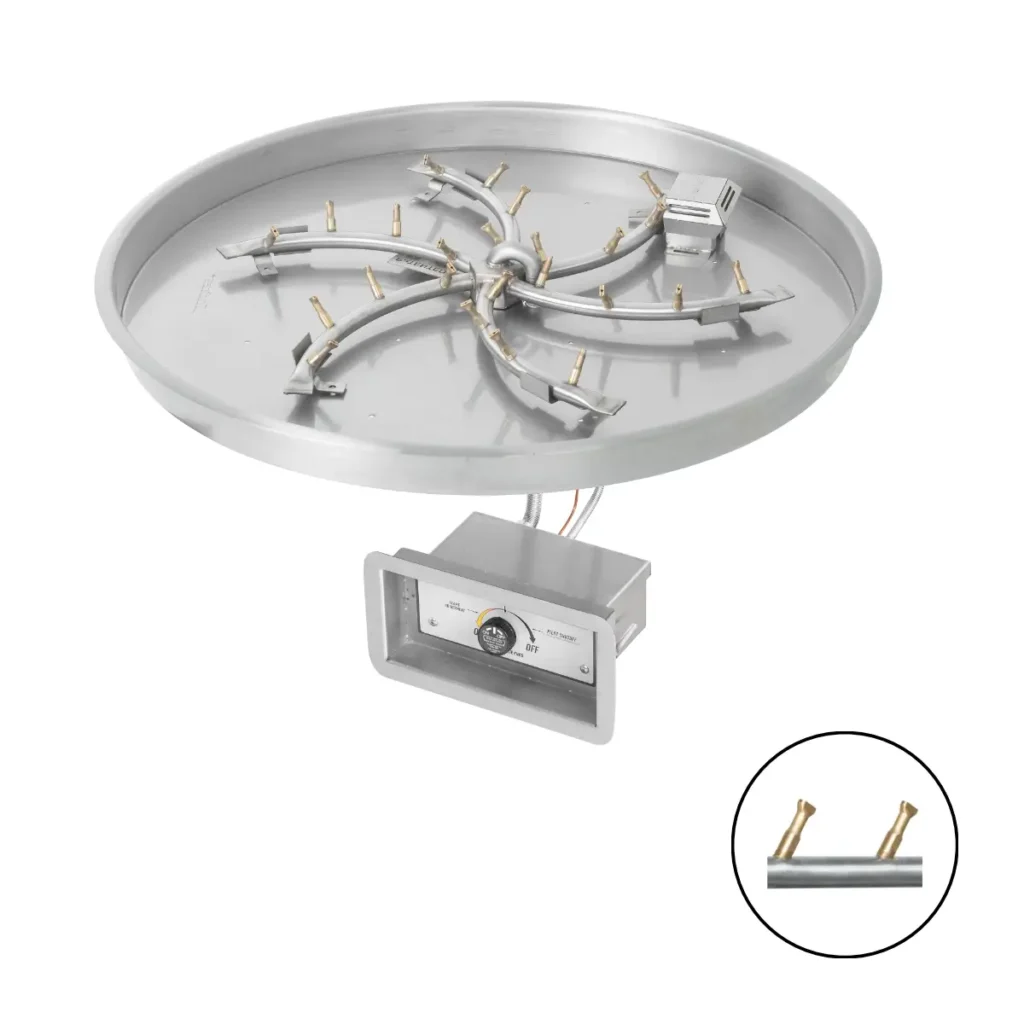

Match Lit Flame Sensing Round Drop In Fire Pit Kit with Triple S Bullet Burner

Match Lit Flame Sensing Round Drop In Fire Pit Kit with Triple S Bullet Burner

Experience straightforward and dependable ignition with The Outdoor Plus Match-Lit Flame-Sensing Kits. Lighting is done manually with a match or taper. For added safety, an integrated flame-sensing system constantly monitors the burner. The gas supply to the burner is automatically cut off should the flame go out, providing peace of mind. Furthermore, Aqua Guard features offer protective benefits against water ingress.

Features

• Simple Match Lit Ignition
• Integrated flame-sensing pilot and thermocouple.
• Protective Gas Valve Box with accessible Control Panel
• Adjustable Flame Height
• Innovative Patented Bullet Burner®
• Patented Aqua Guard Technology

Stainless Steel vs All-Brass

While the all-brass Bullet Burner is available, the stainless steel version is a more cost-effective gas ring while retaining the crucial patented brass nozzles. The design is more accessible without sacrificing performance.

Options

Select Size

There are three sizes available: a 13″ Pan with an 8″ Burner, a 19″ Pan with a 12″ Burner, and a 25″ Pan with an 18″ Burner.

Select Gas Type

The kits are available for use with natural gas or propane. Be sure to select the correct option.

Operation

Match Lit Flame Sensing Round Drop In Fire Pit Kit with Triple S Bullet Burner Specifications:

The sizes refer to the internal diameter of the pan, excluding the 1″ lip. The pan is 2.5″ deep.

The Pan and burner are manufactured from 304-grade Stainless Steel for durability with weep holes for drainage. The Bullet Tips are Brass.

Dimensions and BTU Ratings

• 13″ Pan with 8″ Bullet Burner – BTU rating 50,000 – 1/2″ Gas Inlet
• 19″ Pan with 12″ Bullet Burner – BTU rating 75,000 – 1/2″ Gas Inlet
• 25″ Pan with 18″ Bullet Burner – BTU rating 110,000 – 1/2″ Gas Inlet

Warranty:

• Stainless Steel Pans: Commercial – 1 Year | Residential – 5 Years
• Bullet Burners are supplied with a Lifetime Warranty
• Electronics, Gas Valves, & Pilot Assembly: Commercial – 6 Months | Residential – 1 Year

Match Lit Flame Sensing Round Drop In Fire Pit Kit with Triple S Bullet Burner Documents:

• PDF – Match-Lit-with-Flame-Sense-Installation-and-Operation-Guide
• PDF – Round Drop In Pan with Triple S Bullet Burner Drawings and Specifications
• PDF – Bullet Burner Manual
• PDF – Warranty
