These Round Fire Pit Burner Kits by HPC Fire provide a classic, concentric circular flame pattern. Built as a non-certified kit, it delivers higher gas flow while maintaining safety standards for custom outdoor fire features.

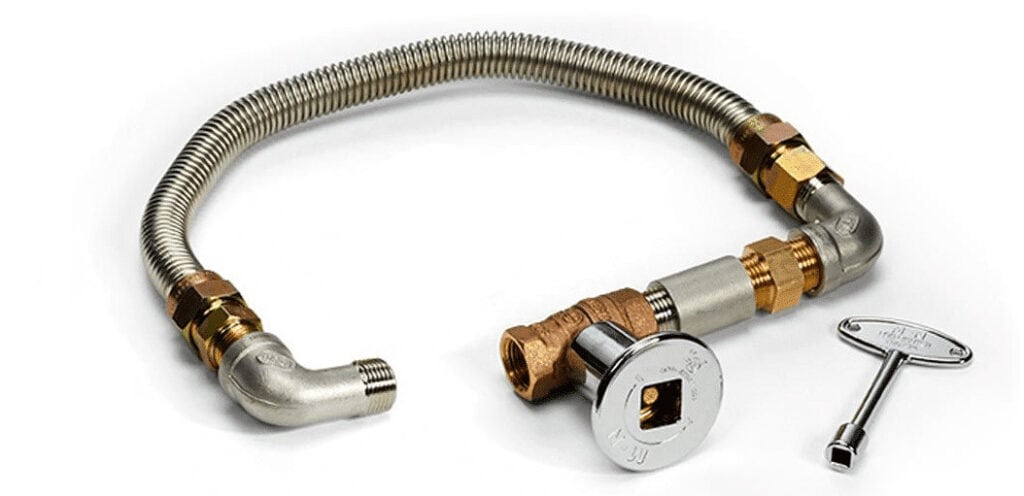

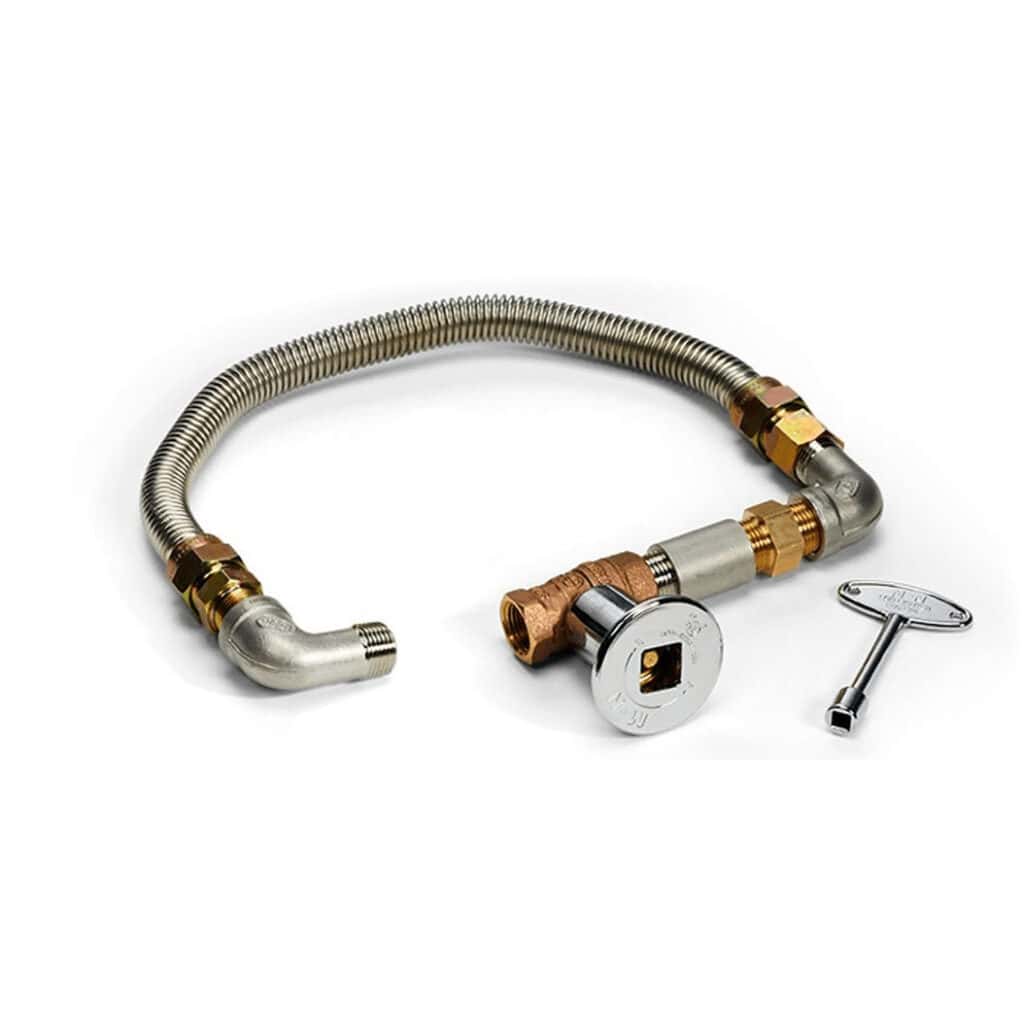

The Kit includes a Round Fire Pit Burner paired with a gas key valve with a polished chrome flange and key, and a whistle-free stainless steel gas flex line with fittings. An Air Mixer valve is included in the Propane option.
Key Features
- Concentric Flame Rings: Available in single, double, triple, and quadruple tier options to ensure full, balanced flame coverage across your fire pit.
- Water Protection: Raised hub design helps prevent water from entering gas lines, safeguarding upstream components.
- 304 Stainless Steel Build: Heavy-duty, weather-resistant construction engineered to resist corrosion and high-heat warping.
- Fuel Type Options: Available, configured for either Natural Gas (NG) or Liquid Propane (LP). Please select the correct fuel type for your setup at checkout.
- Backed by a Lifetime Warranty on the burner.



Product Specifications
Burners require the appropriate gas supply for optimal performance. The 24″ and 30″ models are available with either a standard 1/2″ gas inlet or a 3/4″ High Capacity (HC) gas inlet. Please note that the 24″ HC option increases the maximum rating from 150,000 to 300,000 BTUs.
- 6″ Diameter: 1/2″ Gas Inlet — 60,000 BTUs — Single Ring
- 12″ Diameter: 1/2″ Gas Inlet — 90,000 BTUs — Single Ring
- 18″ Diameter: 1/2″ Gas Inlet — 150,000 BTUs — Double Ring
- 24″ Diameter: 1/2″ Gas Inlet — 150,000 BTUs — Double Ring
- 24″ Diameter (HC): 3/4″ Gas Inlet — 300,000 BTUs — Double Ring
- 30″ Diameter: 1/2″ Gas Inlet — 300,000 BTUs — Triple Ring
- 30″ Diameter (HC): 3/4″ Gas Inlet — 300,000 BTUs — Triple Ring
- 36″ Diameter (HC): 3/4″ Gas Inlet — 300,000 BTUs — Triple Ring
- 48″ Diameter (HC): 3/4″ Gas Inlet — 300,000 BTUs — Quadruple Ring
