HPC Round Unfinished Fire Pit Enclosure Kit with gas Tank storage

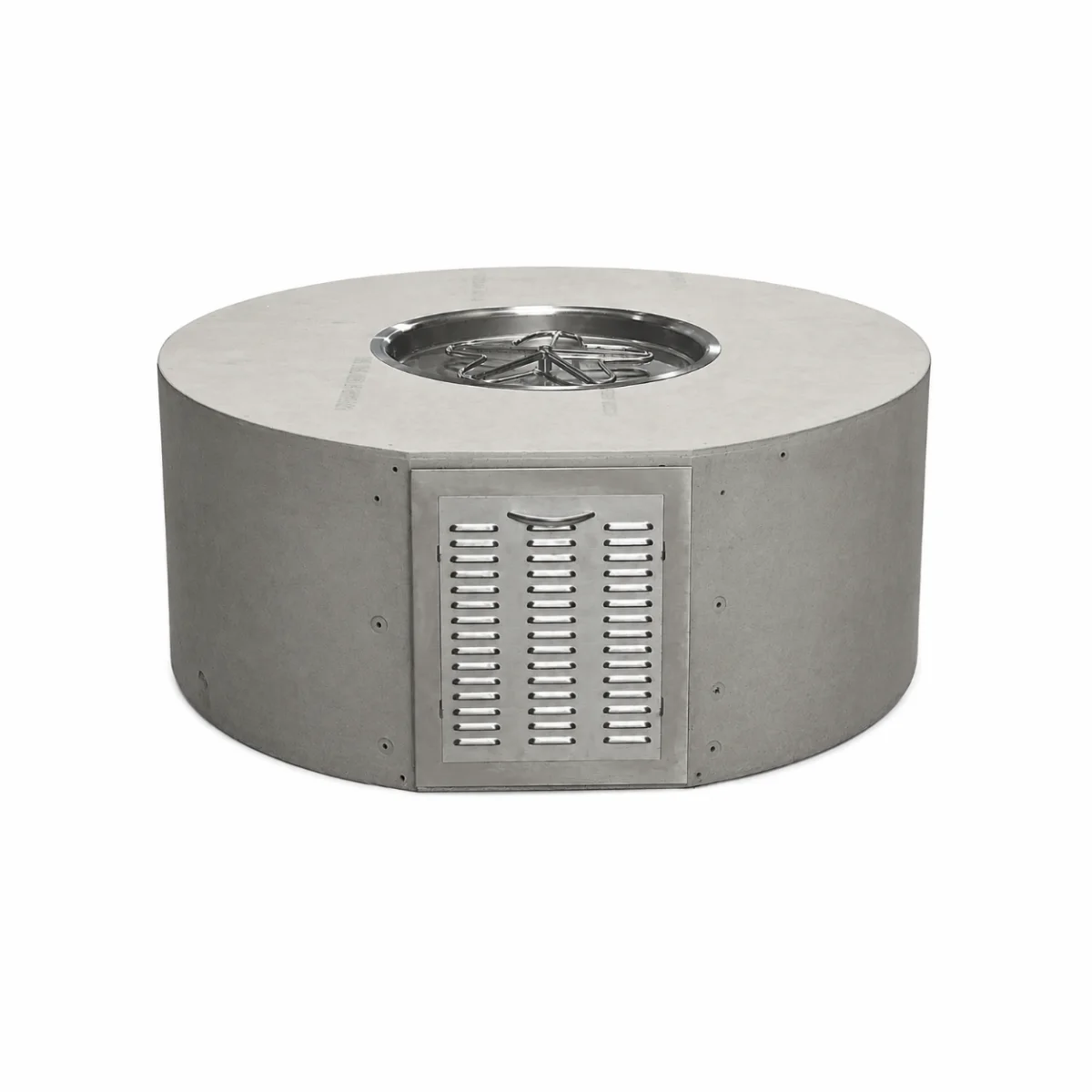

This 60″ Round Enclosure is a pre-fabricated fire pit with everything you would need except the final cladding! This provides the flexibility for you to tailor the enclosure to perfectly blend with the aesthetic of its surroundings. Whether you prefer a sleek modern look, a rustic feel, or something entirely unique, having the freedom to select the cladding material gives you the opportunity to create a truly personalized outdoor space.
Pre-Fabrication of the structure simplifies the construction process, removes the guesswork, and significantly reduces construction time, which is ideal for Contractors, Hardscape Companies as well as DIY enthusiasts.

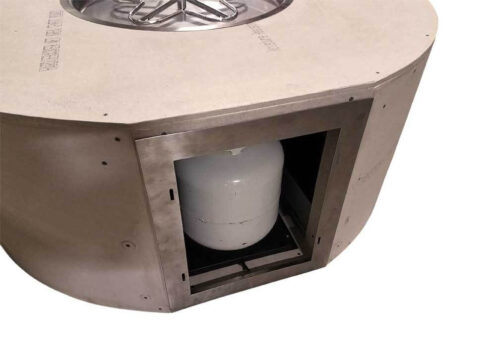

The Enclosure is 60″ in diameter and stands at 23.5 inches tall. This extra height allows for a 20lb propane bottle to be hidden inside, accessed via a stainless steel panel.

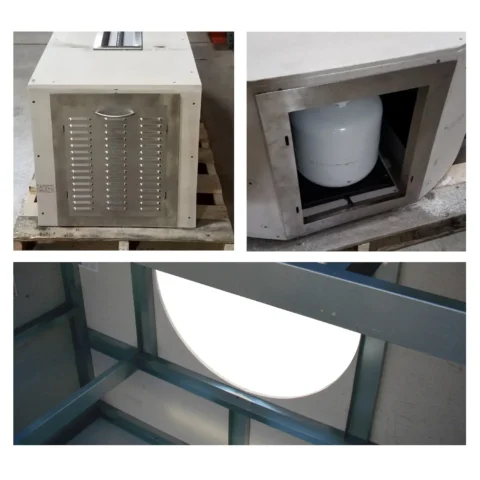

The HPC Round Unfinished Fire Pit Enclosure is commercial-grade and boasts a sturdy 22-gauge galvanized steel material with a welded frame and a 1/2” Hardiboard shell finish.
The Enclosure is supplied with a fully assembled HPC Round Insert and Burner with the Ignition System of your choice, the Hardiboard, the Galvanized Steel Framed Enclosure, Access Panel for a Hidden Gas Tank, and Stainless Steel Vents with pre-cut holes in the Hardiboard.
Options
Burner Options
There are two options for burner type. The Torpedo Penta Burner or Standard Penta Burner. Penta refers to the shape of the burner.
The Standard Burner has gas holes drilled into the Stainless Steel. In contrast, the Torpedo version is fitted with precision-engineered nozzles, which according to HPC develop a bigger, warmer flame without excessive gas consumption. For more detailed information on these, please refer to the Torpedo Burner Page.
Ignition Options
There are two options, Match Lit and Push Button Flame Sensing.
Match Lit
The Match Lit system utilizes the chrome key valve installed on the fire pit structure to light the burner.
Simply turn the key to the on position and light the gas with a match, taper, or lighter. The flame can be adjusted and turned off using the key valve.
Push Button Flame Sensing Kit
Ignited via a spark probe, with the push button on the the valve control panel.
A flame monitoring system automatically cuts off the gas if the flame is extinguished.
This battery-operated system is a good solution when flame sensing is necessary but AC power is unavailable.
HPC Round Ready To Finish Fire Pit Enclosure Kit with Gas Tank Storage Specifications:
Enclosure
- Dimensions: 60″ diameter x 23.5″ tall
- Cladding area: 48 SQ FT (not included)
- Weight: 150lb
- Frame: 22-gauge galvanized steel
- Durable HardieBoard walls ensure strength
- Pre-cut ventilation for proper airflow
- Pre-cut holes for push-button or match-lit installations
- Pre-cut space for inserts
Pan & Burner
- Fully assembled, commercial grade, CSA-certified fire pit insert
- Insert – Round 25″ Stainless Steel Bowl Pan
- Burner – 18″ Stainless Steel Penta or Torpedo Penta Burner
Burner BTU Ratings
- Match Lit – 65,000 BTUs/hr
- Push Button Spark Ignition – 90,000 BTUs/hr
Access Panel for Hidden Gas Tank
Dimensions: 13.5″ x 17.5″
Certification
All the Ignition Systems are CSA Certified
Warranty
- Stainless Steel Fire Burners: Lifetime warranty
- Electronic Components and Gas Valves: Residential – 3 Years, Commercial -1 Year
- Pilot Assembly: Residential – 2 Years, Commercial – 1 Year
- Stainless Steel Components: Residential – 5 Years, Commercial – 1 Year
- Cold Rolled Steel Components: Residential – 1 Years, Commercial – 6 Months
- Unfinished Fire Pit Enclosures: Residential – 3 Years, Commercial – 3 Years
HPC Round Ready To Finish Fire Pit Enclosure Kit with Gas Tank Storage Downloads:
Enclosure
Fire Pit Insert
California Prop 65
Prop 65WARNING: California PROP 65: This product can expose you to Lead & Chromium, known to the State of California to cause cancer and congenital disabilities or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
