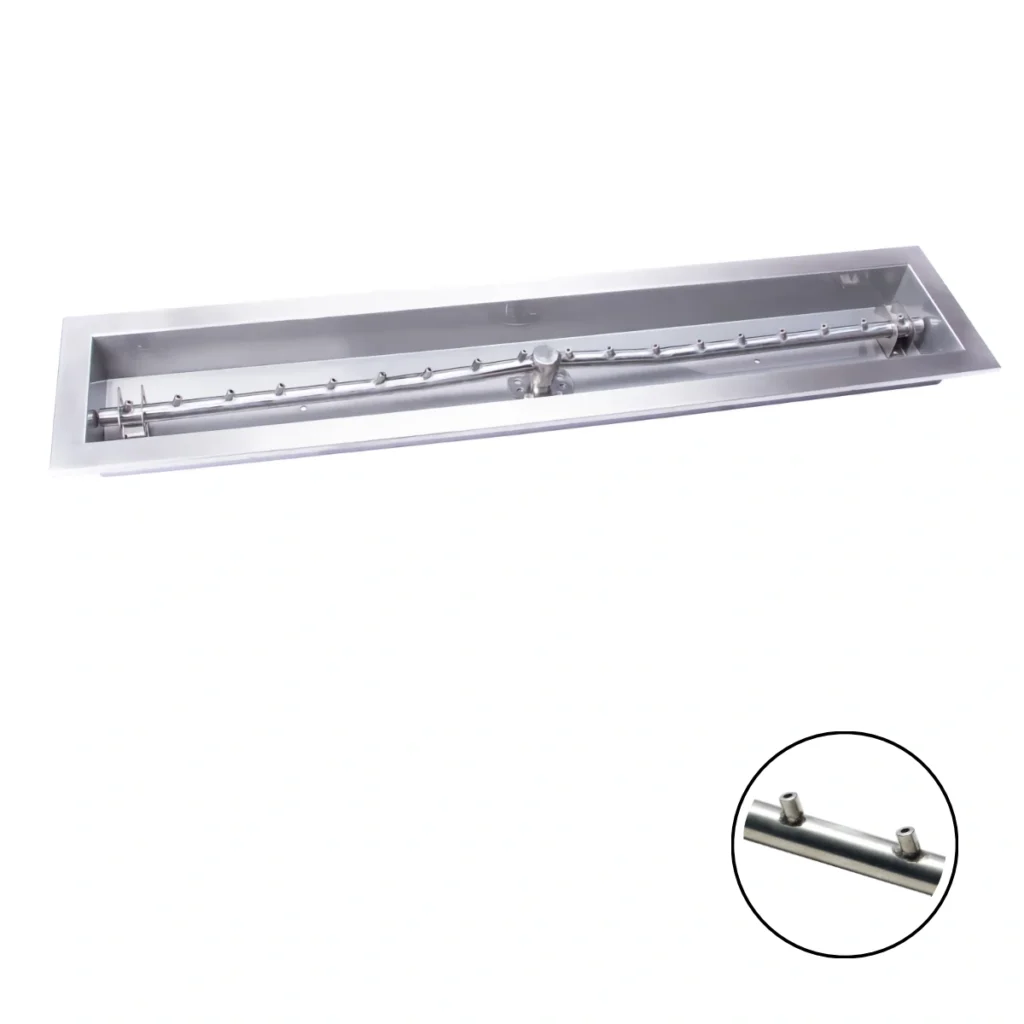

HPC Linear Trough Fire Pit Pan with Torpedo Burner

HPC Linear Trough Fire Pit Pan with Torpedo Burner

The Stainless Steel HPC Linear Trough Fire Pit Pan, equipped with the patented Torpedo T-Burner, delivers a captivating flame display with optimized gas efficiency, thanks to its precision-engineered nozzle.

Features

• Fully assembled with welded gas fitting.
• Weep holes for drainage.
• Raised Hub for water mitigation.
• Lifetime Warranty on the burner.

Easy to Install

Installing drop-in fire pit pans is straightforward. They’re designed to simply “drop” into a pre-cut opening in your fire feature, with the lip providing stable support.

The pan is easily removed for maintenance and access to the plumbing below.

HPC Linear Trough Fire Pit Pan with Torpedo Burner Specifications

HPC Linear Inserts and T-Burners are manufactured from 304-grade stainless steel, designed to deliver durability and functionality.

The Inserts/Pans are 2.5″ deep and 5.4” wide, the length is determined by the size you order. Please note that the dimensions below do not include the 1.3” lip and correspond to the internal dimensions of the pan.

BTU Rating & Dimensions

Size 24″ – Pan 24.5″ x 5.4″  BTU rating – 100,000 – 1/2″ Gas Inlet
Size 36″ – Pan 36.5″ x 5.4″  BTU rating – 125,000 – 1/2″ Gas Inlet
Size 48″ – Pan 48.5″ x 5.4″  BTU rating – 150,000 – 1/2″ Gas Inlet
Size 60″ – Pan 60.5″ x 5.4″  BTU rating – 175,000 – 1/2″ Gas Inlet
Size 72″ – Pan 72.5″ x 5.4″  BTU rating – 200,000 – 1/2″ Gas Inlet
Size 96″ – Pan 96.5″ x 5.4″  BTU rating – 300,000 – 1/2″ Gas Inlet

Selecting Your Gas Type

• The Natural Gas option includes the Interlink Pan, T-Burner, and Burner Brackets.
• The Propane option provides all the components of the Natural Gas setup, plus an air mixer and fittings.

Warranty:

• Stainless Steel Outdoor Burners  – Lifetime Warranty
• Stainless Steel Pan – Limited Warranty
  • Commercial -1 year
  • Residential  – 5 years

HPC Linear Trough Fire Pit Pan with Torpedo Burner Documents:

• HPC Linear Torpedo Burners Drawing & Spec Sheet- PDF
• HPC Linear Trough Insert Drawing & Spec Sheet – PDF
