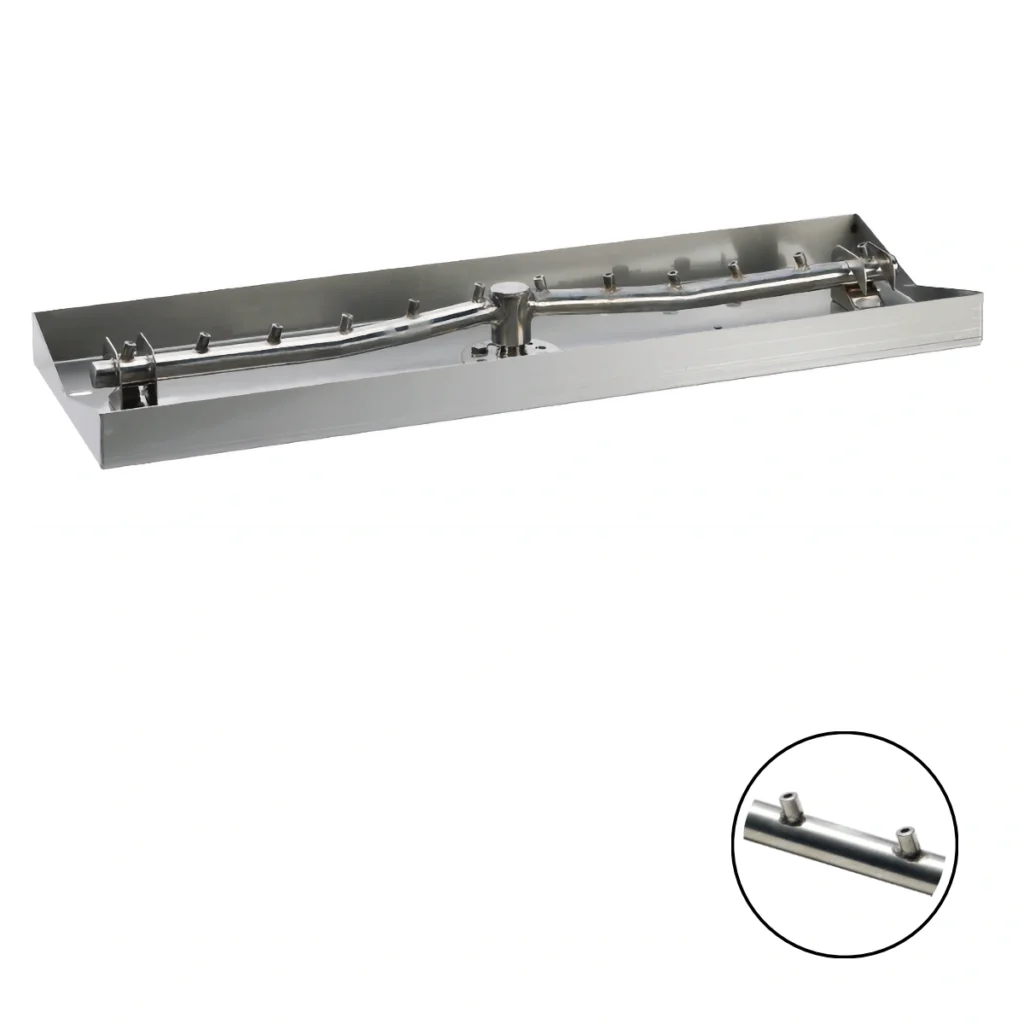

HPC Linear Interlink Fire Pit Pan with Torpedo Burner

HPC Linear Interlink Fire Pit Pan with Torpedo Burner

The Interlink Linear design is a standout feature unique to HPC Fire, offering unmatched flexibility. Its most significant advantage is the ability to place the fire pit pans end-to-end, creating a seamless, continuous flame that transforms any fire feature into a show-stopper.

The Linear Interlink Pans are 8″ wide and range from 25″ to 121″ in length. The T-Burners are 1″ shorter than the pan length, allowing for a smooth, unbroken flame effect when arranged end-to-end.

This innovative approach delivers on performance while keeping installation simple. By combining different lengths, you can design a fire pit setup that fits seamlessly into your space—offering a tailored solution without the complexity of full customization.

Effortless Installation and Sleek Design

An Interlink Pan requires a built-in collar or shelf, to provide a base to support the the pan. The collar should be positioned to allow the pan to sit below the top surface of the structure. Once installed with fire media the pan, gas connections, and plumbing are hidden.

The spectacular Torpedo T-Burner features a nozzle that is precision-engineered and according to HPC develops a bigger, warmer flame without excessive gas consumption. For more detailed information please refer to the SST Torpedo Burners page.

Selecting Size

Available in seven sizes. The larger sizes of the HPC Linear Interlink Fire Pit Pan with Torpedo Burner are constructed in three sections, a center section as seen in the main image with an extension at each end.

The pans have a central 1/2″ Gas Inlet. The sidewalls are 1.5″ high.

• 25″ x 8″ Pan has a 24″ Burner rated 100,000 BTUs
• 37″ x 8″ Pan has a 36″ Burner rated 125,000 BTUs
• 49″ x 8″ Pan has a 48″ Burner rated 150,000 BTUs
• 61″ x 8″ Pan has a 60″ Burner rated 175,000 BTUs
• 73″ x 8″ Pan has a 72″ Burner rated 200,000 BTUs
• 97″ x 8″ Pan has a 96″ Burner rated 250,000 BTUs
• 121″ x 8″ Pan has a 120″ Burner rated 300,000 BTUs

Selecting Your Gas Type

• The Natural Gas option includes the Interlink Pan, T-Burner, and Burner Brackets.
• The Propane option provides all the features of the Natural Gas setup, plus an air mixer and additional fittings.

HPC Linear Interlink Fire Pit Pan with Torpedo Burner Specifications:

Crafted from 18-gauge, 304 stainless steel, HPC Interlink Linear Inserts are designed to deliver strength and functionality.

• Manufactured from #304 Stainless Steel
• The raised hub guides water downward and out toward the weep holes located on the ends of the burner
• The tooled weep holes allow any water that does enter, to drain out.

Warranty:

• Stainless Steel Outdoor Burners  – Lifetime Warranty
• Stainless Steel Pan – Limited Warranty
  • Commercial -1 year
  • Residential  – 5 years

HPC Linear Interlink Fire Pit Pan with Torpedo Burner Documents:

• HPC Fire Linear Torpedo Burners Spec Sheet- PDF
• HPC Linear Interlink Insert Spec Sheet – PDF
