Flat Rectangular Fire Pit Kit with Spark Ignition – American Fire Glass

Flat Rectangular Fire Pit Kit with Spark Ignition – American Fire Glass

Overview

American Fire Glass has recently introduced this new Rectangular Flat Pan to its well-established range of Fire Pit Pans and Burners

Size options:
Available in 3 sizes; 48″ x 24″, 60″ x 24″, and 72″ x 24″.

Fire Pit Pans provide a sturdy foundation for your burner and minimize the amount of fire glass needed. Accessing gas connections and other components within the structure is made simple, saving you time and hassle.

Made of 100% high-quality 304 stainless steel, the fire pit H Burner and Pan are extremely durable and able to withstand both heat and harsh weather without sustaining damage.

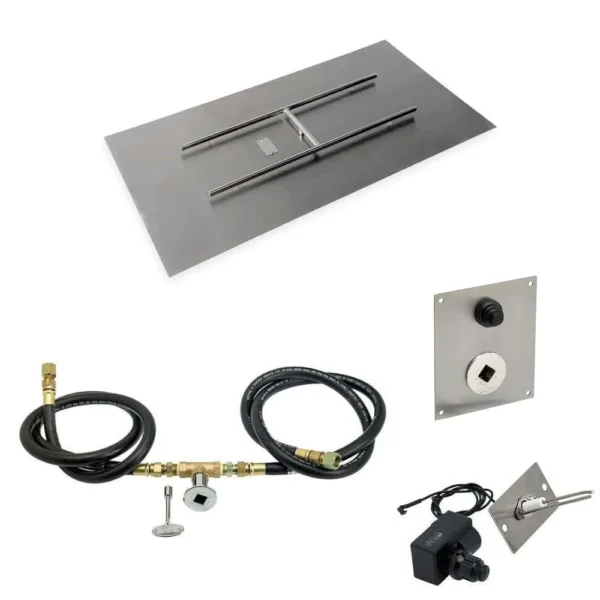

The rectangular fire pit kits with spark ignition come equipped with:

● Rectangular Flat Fire Pit Pan & H Burner

● Push Button Spark Igniter – the fire pit ignition kit is battery operated (included) and ignites the burner by push the button.

● Accessories – gas hose with key valve. Air mixer & regulator (propane only).

Btu’s and Flame Height

In the specifications below you will see a reference to the BTU rating of the burners. To avoid disappointment, ensure that the gas supply to your fire pit is sufficient for the BTU rating of the burner at the required pressure in order to generate a decent flame in your fire pit.

Take a look at our blog post – Gas Fire Pit Flame Height – to give you the full low down on BTUs and flame height.

Flat Rectangular Fire Pit Kit with Spark Ignition – Features and Specs

Features:

● Made of 100% high-quality 304 stainless steel
● Can be used with either Natural Gas or Propane, for propane applications, an air mixer is required.
● Weep holes are drilled into the flat fire pit burner pan in order to prevent water accumulation.
● For use in outdoor vented natural or propane gas burning fire feature ONLY
● 1/2″ bottom gas inlet for easy installation.
● Warranty: Lifetime

Pan and Burner Specifications:

● The 48″ x 24″ Pan has a 32″ x 8″ H Burner with a BTU rating of 128,000

● The 60″ x 24″ Pan has a 44″ x 8″ H Burner with a BTU rating of 176,000

● The 72″ x 24″ Pan has a 56″ x 8″ H Burner with a BTU rating of 224,000

We strongly recommend that all Gas Installations are performed by qualified professionals and that the installation conforms to all Local and State Codes.

WARNING: This product can expose you to chemicals including CARBON MONOXIDE, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
