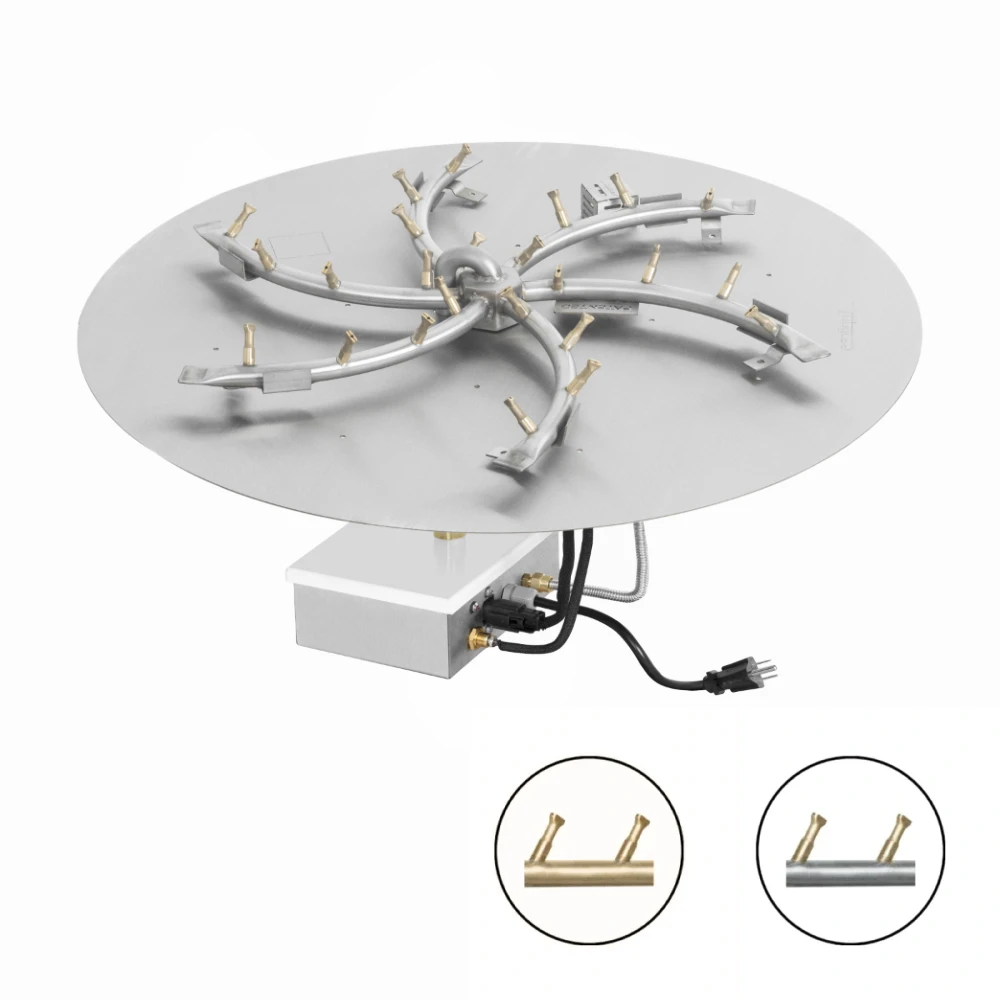

The Electronic Ignition Round Flat Fire Pit Kit with Triple S Bullet Burner by TOP delivers a focused, highly efficient flame display for custom fire feature builds. While naturally paired with circular enclosures, the round flat pan also works exceptionally well inside square fire pits, where it creates a balanced central flame cluster with clean visual symmetry. Utilizing TOP’s patented bullet burner technology, this system produces taller, fuller flames while consuming less fuel than standard commercial burners.
The flat pan design fits cleanly into custom fire features where a flush, seamless look is required. Built without a top lip, the pan sits directly on internal ledge supports within your fire pit structure. Once your chosen fire media is applied, the pan and pan edges disappear completely, leaving only the flame presentation visible.
Configured with smart electronic ignition, this kit ensures reliable lighting under variable weather conditions. Built-in thermo-sensing safety features continuously monitor for flame loss, immediately shutting off gas flow if the flame goes out and attempting an automatic reignition. This automated setup enables full control via wall switches, timers, pool automation systems, or smart home controls.
To browse more automated setups, view all electronic ignition fire pit kit options.
Options
Select Size
Seven sizes are available to match your custom fire pit enclosure dimensions and heating output requirements.
Select Gas Type
Available for Natural Gas and Propane. Ensure the correct gas type is selected, as systems are not interchangeable.
Select Ignition
Electronic Ignition – Low Voltage (CSA Certified)
Low-voltage electronic ignition systems are suitable for fire features near water and are commonly used in poolside installations. The system will automatically relight if the flame is extinguished.
These systems can be connected to a wall switch, timer, remote control, pool controller, or smart home system. Remote control upgrades are available.
Electronic Ignition – Plug & play (CSA Certified)
Standard voltage (110V) electronic ignition systems are suitable for installations where mains power is available, but are not intended for use near water.
The system features flame sensing and will automatically attempt to relight if the flame is extinguished.
These systems can be connected to a standard wall switch, timer, emergency stop, or smart home system. Remote control upgrades are available.
Product Specification
The pan is made from .304 stainless steel with a Triple S manufactured from either brass or .304 Stainless Steel.
Sizes and BTU Rating
- 18″ Flat Pan (A): 8″ Burner – 1/2″ Gas Inlet – 50,000 BTU
- 18″ Flat Pan (B): 12″ Burner – 1/2″ Gas Inlet – 75,000 BTU
- 24″ Flat Pan: 18″ Burner – 1/2″ Gas Inlet – 110,000 BTU
- 30″ Flat Pan: 24″ Burner – 1/2″ Gas Inlet – 145,000 BTU
- 36″ Flat Pan: 30″ Burner – 3/4″ Gas Inlet – 180,000 BTU
- 48″ Flat Pan: 36″ Burner – 3/4″ Gas Inlet – 220,000 BTU
- 60″ Flat Pan: 48″ Burner – 3/4″ Gas Inlet – 385,000 BTU
What’s Included
Installation Considerations
For outdoor use only.
Electronic ignition systems require a minimum of 10″ clearance below the pan. With a manifold, this increases to 15″.
A gas shut-off valve must be installed externally for emergency and maintenance access. A gas key valve is recommended to allow manual flame control.
Proper ventilation of the fire pit enclosure is essential for cooling and venting residual gas. A minimum of two vents on opposing sides is required, each with at least 18 sq. inches of free air space.
Adequate drainage must be provided to prevent water accumulation within the enclosure.
