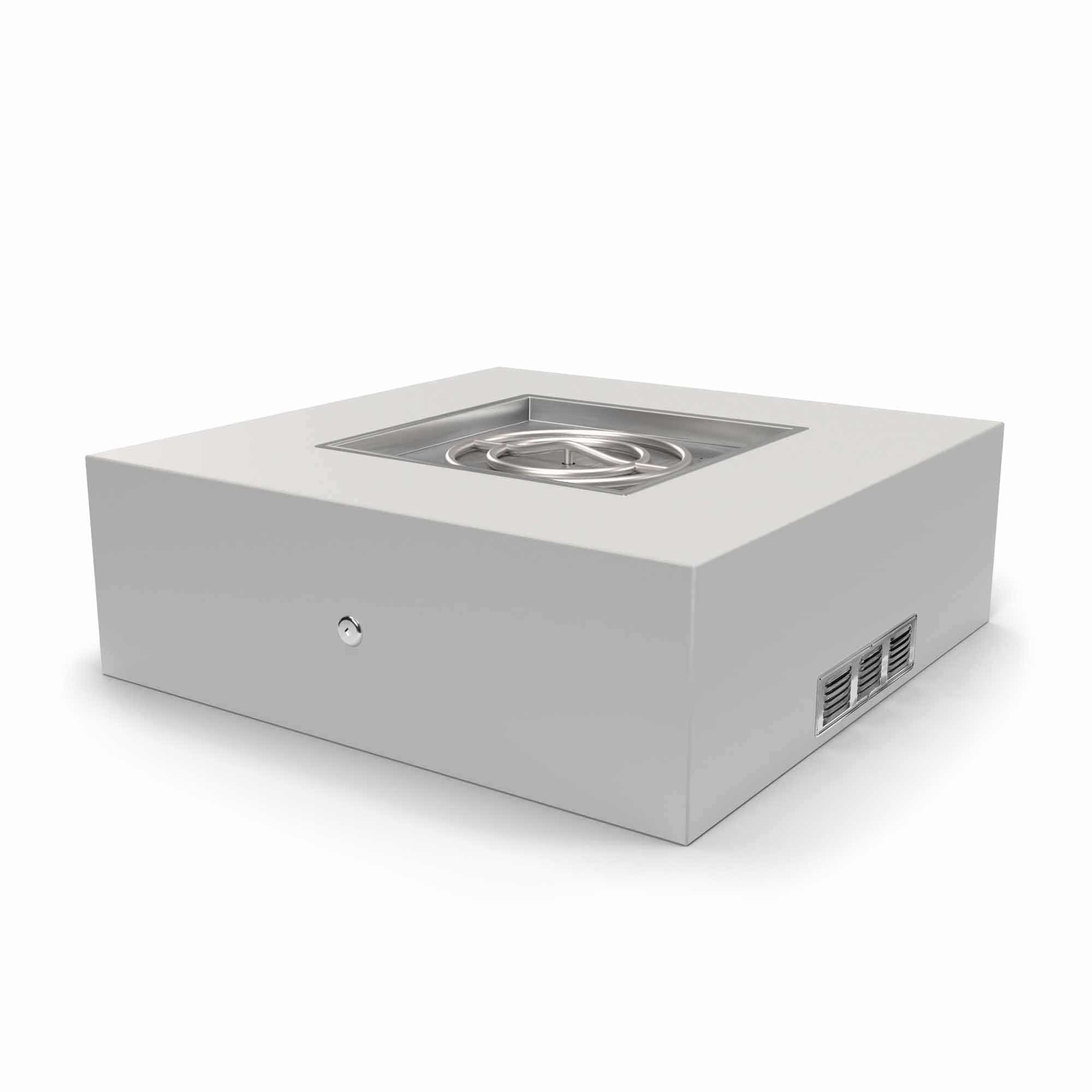

The Outdoor Plus Ready-to-Finish Square Fire Pit 72×72×16
Product Overview:
- 72 x 74 ( no door ) RTF Enclosure Kit
- 48 x 48 Stainless Steel Drop In Fire Pit Pan with 36″ Stainless Steel Triple Ring Burner
- 12V High Capacity Smart Weather Electronic Ignition System
72 X 72 RTF Enclosure Kit
Ready-to-Finish forms are pre-built, fully assembled fire pits with a raw Hardie board finish. This allows you to quickly build a fire pit with your choice of exterior finishing. Match its surroundings or create a truly unique feature, either way, the hassle of building a fire pit from scratch is eliminated. The Fire Pit Structure framework is built from sturdy steel tubing which will support any granite or stone finish.
The Rtf Form comes in a raw Hardy Board finish and includes Stainless Steel Air Vents.

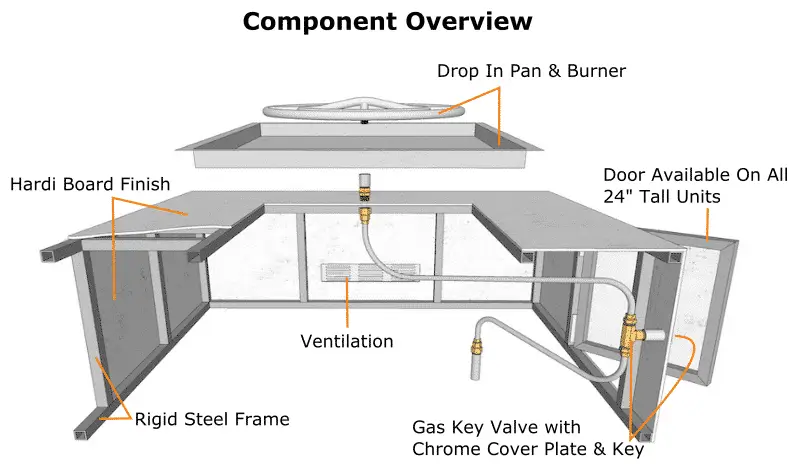

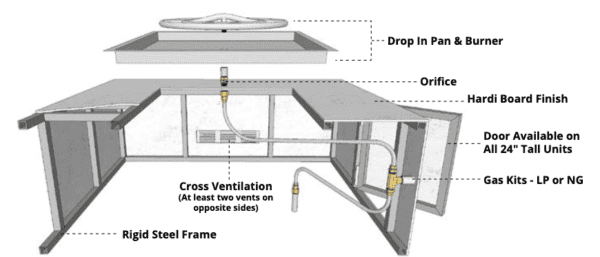

The Outdoor Plus Ready-to-Finish Square Fire Pit 72×72×16 Components
PAN & BURNER
The Kit includes a 48 x 48 Stainless Steel Drop In Fire Pit Pan with 36″ Stainless Steel Triple Ring Burner
Constructed from 304 Stainless Steel. Standard 1″ seamless lip. Depth of 2″. Multiple weep holes for proper water runoff. Raised gas inlet to prevent water from entering the gas line. They will be fitted with a 36″ Triple ‘S’ burner rated at 240,00 BTU which is supplied with a Lifetime Warranty.

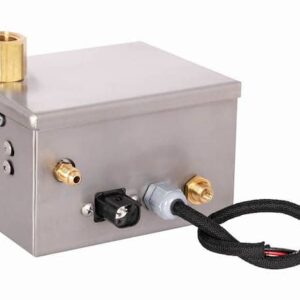

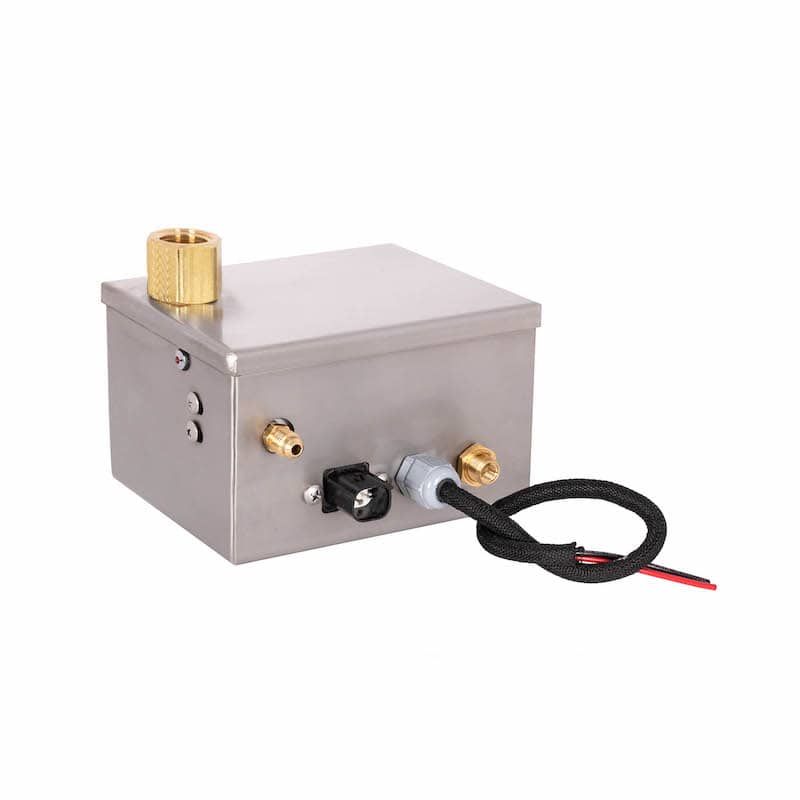

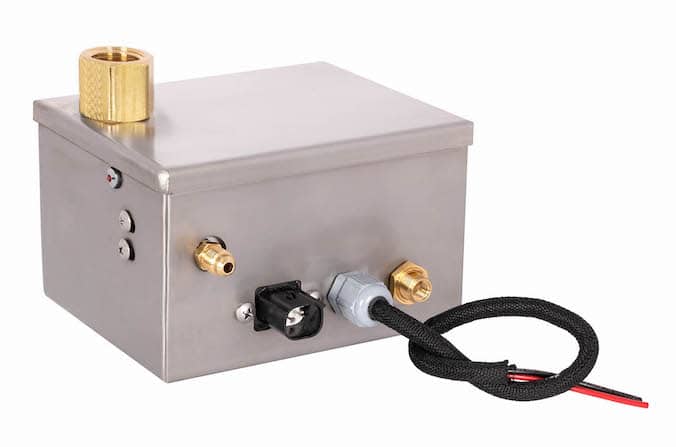

HIGH CAPACITY – ELECTRONIC IGNITION SYSTEM
The Electronic Ignition Fire Pit Kit Includes: Electronic Valve, Pilot Igniter, 12VAC Transformer, & Installation Manual
The Electronic Ignition System constantly monitors the flame. If the flame should extinguish then the system makes several attempts to re-light the flame. If that fails then the unit automatically turns off the gas., thus preventing the build-up of a potentially dangerous gas cloud.
Specifications:
» Maximum Gas Output: 510K BTU/hr
» Inlet Gas Pressure Limit: ½ PSI
» Inlet / Outlet Size: 3/4” FIP
» Electrical Rating: 12VAC
» Hot Surface Igniter (HSI)
» Thermocouple Flame Sensor
» LED Diagnostics
» -20° – 175° Temp Range
Optional Add-On:
- Outdoor rated box
- Suitable for 110 – 12 volt only
- Includes Remote and Receiver, transformer, and On/Off switch
-
Not Compatible With Match Lit Systems
- Provides you with Bluetooth control for all electronic ignition systems
- Suitable for 110VAC Only
- Supports iOS and Android
- Free Smart Phone app available
Download Manuals:
