AWEIS Electronic Ignition Kit for Gas Fire Pits Standard Capacity

AWEIS allows you to enjoy all the benefits of your fire pit at the flick of a switch or press of a button! It is the perfect solution for those who need an effective and reliable way to ignite their fire pits, fire bowls, or burners!

This is a 24VAC Fire Pit Electronic Ignition System making it ideal for poolside fire pits or any other fire feature located close to water.

This is a Standard Capacity Kit with a maximum gas output of 290 BTU/hr, which means it works well with most fire features. High-capacity kits are also available.

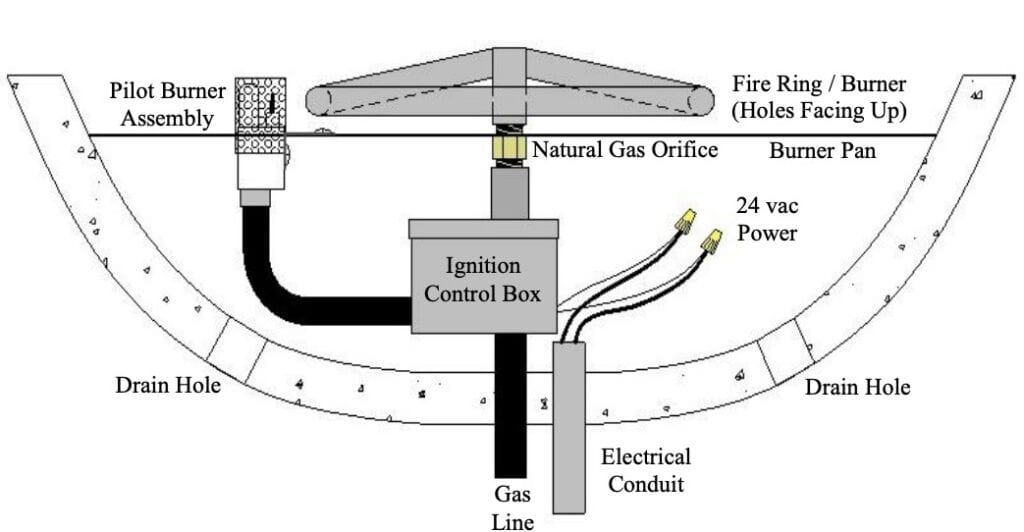

Diagram of the S.I.T. Electronic Ignition Kit for Fire Pits installed in fire bowl
AWEIS Kits are perfect for tight spaces such as fire bowls

To operate your fire pit, the AWEIS should be wired to one of the following; a wall switch, timer or a remote control.

How does the AWEIS work?

Ignition

The starting sequence is initiated with a simple button click or switch flick. The hot surface igniter heats up, igniting the pilot flame which is then detected by the thermocouple allowing a signal to be sent opening the main gas valve. Once open, the main burner is lit by the pilot flame.

Safety Flame Sensing

If the main burner flame is extinguished, the pilot flame will relight it. If the pilot flame goes out the unit will commence the relighting sequence.

This system provides the highest level of safety for your fire feature. It will automatically make multiple attempts to re-light the flames, however, if the burner fails to re-light, the system automatically closes the internal gas valve as a safety precaution.

Factors to Consider when building an AWEIS Fire Pit

  • AWEIS is to be used with outdoor, vented fire features ONLY.
  • The Liquid Propane version is intended for whole house propane supply ONLY.
  • Ventilation – Install a minimum of 18 square inches of ventilation at the bottom on at least two opposing walls of the enclosure. Ventilation provides airflow to avoid overheating the components and air for the air mixer to function properly.
  • The AWEIS requires a minimum of one cubic foot of space beneath the bottom of the pan for installation.
  • Sufficient drainage of the enclosure is required to prevent components from becoming submerged.
  • A listed gas shut-off valve is required by the Code to be installed before the location of the appliance.
  • Installation – Certified NFI Professional Recommended
  • Adding a Fire Pit Lid to the fire pit will help further protect your equipment from the elements.

Electronic Ignition Kit for Fire Pits Specifications:

  • Outdoor Fire Pit Electronic Ignition Kit – The 316 marine-grade stainless steel control box protects every component from even some of the harshest weather conditions.
  • This is a Standard Capacity Kit with a maximum gas output of 290 BTU/hr, which means it works well with most fire features. High-capacity kits are also available.
  • Flame / Heat Sense: Thermopile
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Ignition Source: Pilot
  • AWEIS Max. Btu Output: 290K Btu/hr
  • Inlet / Outlet Size: 1/2″ FPT
  • Operating Voltage: 24 volts ac
  • Inlet Gas Press: Limit: 2.0 PSI
  • Valve Enclosure Dim.: 4 3/8″ x 4 3/8″ x 4 3/8″ (tall)
  • Warranty: 1-year limited warranty

Downloads:

AWEIS 24VAC Instruction Manual
