72 Inch Square Ready to Finish Form with 48 x 48 Drop in Tray with 36" Burner

SKU Custom config Category Enclosures
List Price: $7,985.00
You save: $763.00
Our Price: $7,222.00 + FREE SHIPPING
Clear

Product Overview:

  1. 72 x 74 ( no door ) RTF Enclosure Kit
  2. 48 x 48 Stainless Steel Drop In Fire Pit Pan with 36″ Stainless Steel Triple Ring Burner
  3. 12V High Capacity Smart Weather Electronic Ignition System

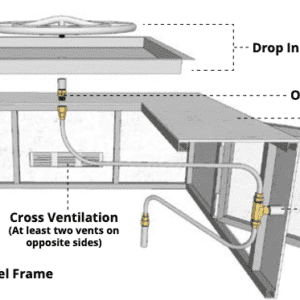

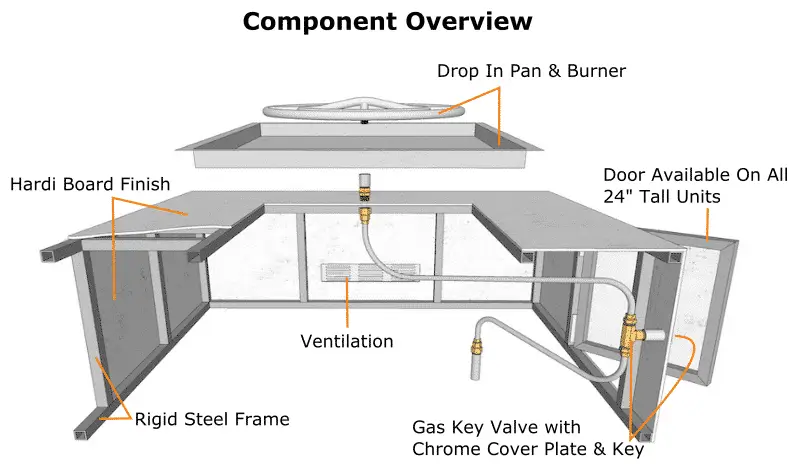

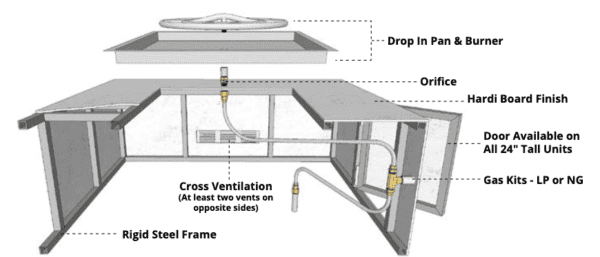

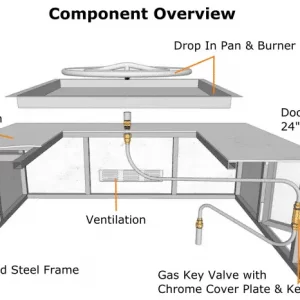

72 X 72 RTF Enclosure Kit

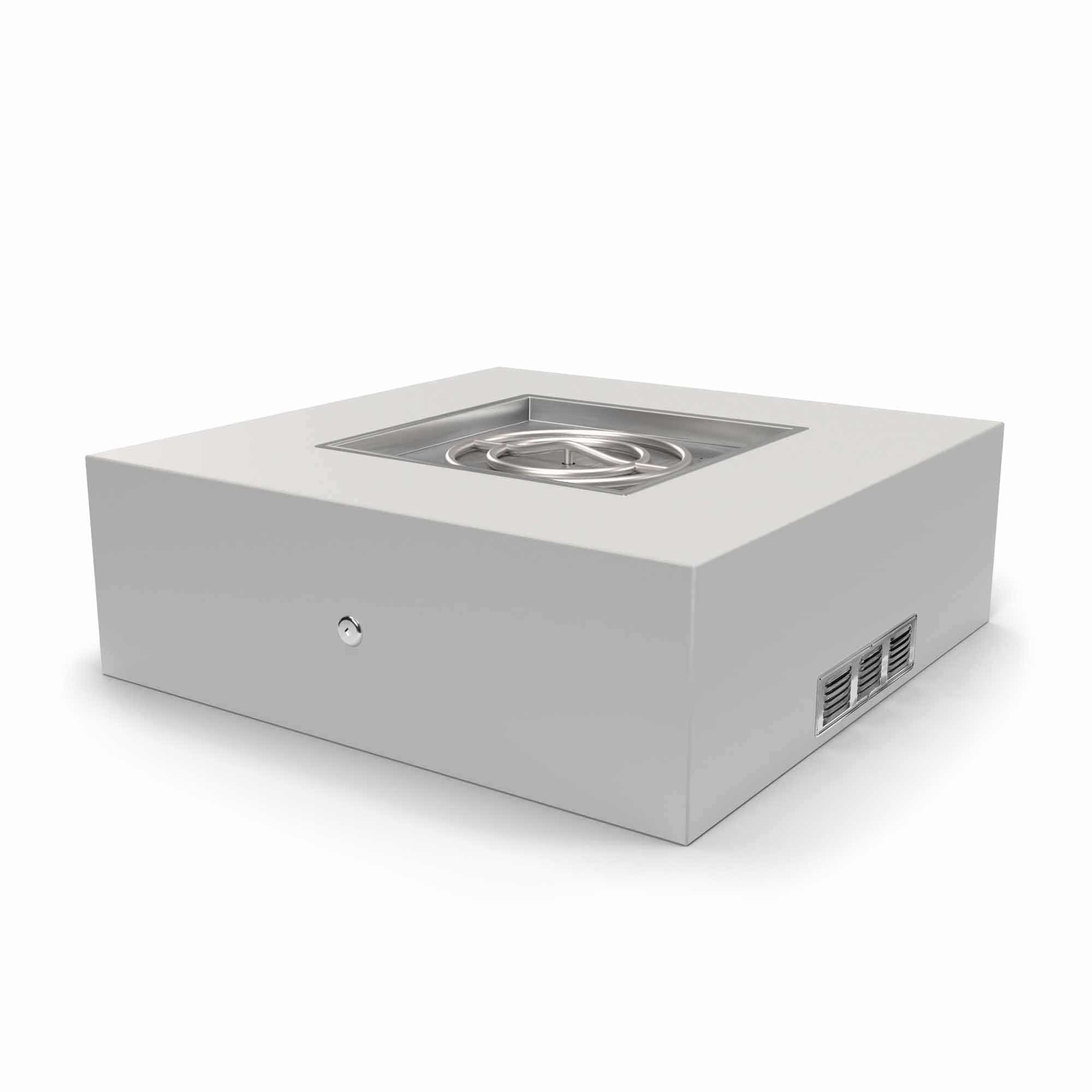

Ready-to-Finish forms are pre built, fully assembled fire pits with a raw hardie board finish. This allows you to quickly build a fire pit with your choice of exterior finishing. Match its surroundings or create a truly unique feature, either way the hassle of building a fire pit from scratch is eliminated. Our frames are built from sturdy steel tubing to support any granite or stone finish.

Enclosure Kit



The Rtf Form comes in a raw Hardy Board finish and include Stainless Steel Air Vents.

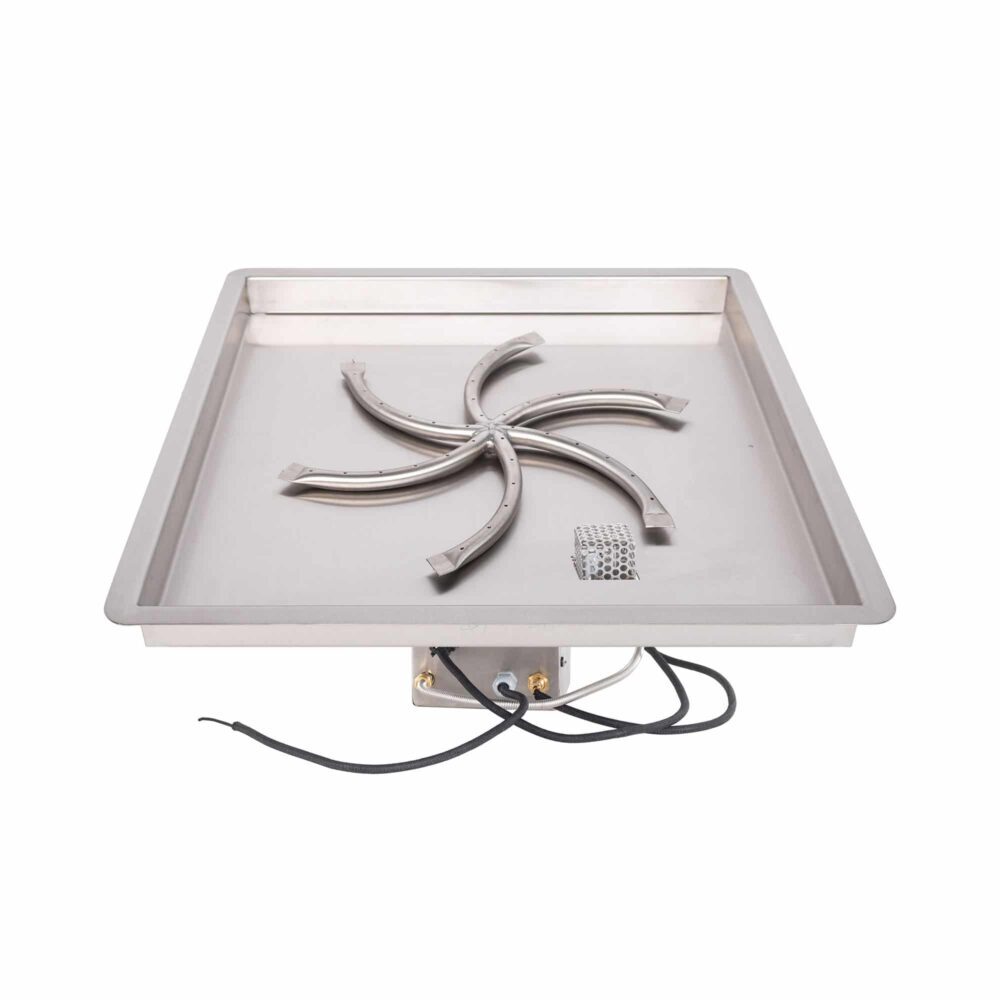

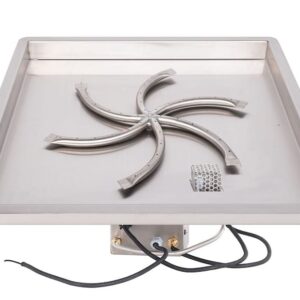

48 x 48 Stainless Steel Drop In Fire Pit Pan with 36″ Stainless Steel Triple Ring Burner

Constructed from 304 Stainless Steel. Standard 1″ seamless lip. Depth of 2″. Multiple weep holes for proper water runoff. Raised gas inlet to prevent water from entering the gas line. The will be fitted with a 36″ Triple ‘S’ burner rated at 240,00 BTU which is supplied with a Lifetime Warranty.

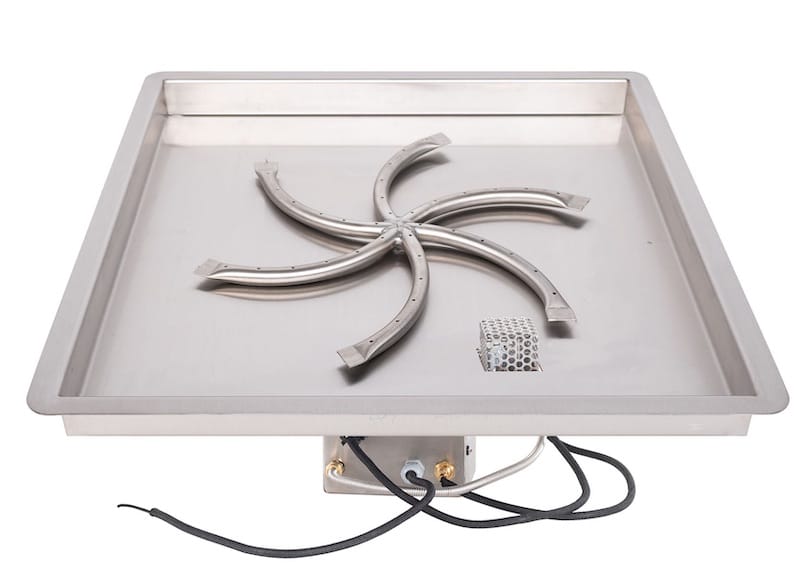

48 x 48 Pan with 36 Triple S Burner

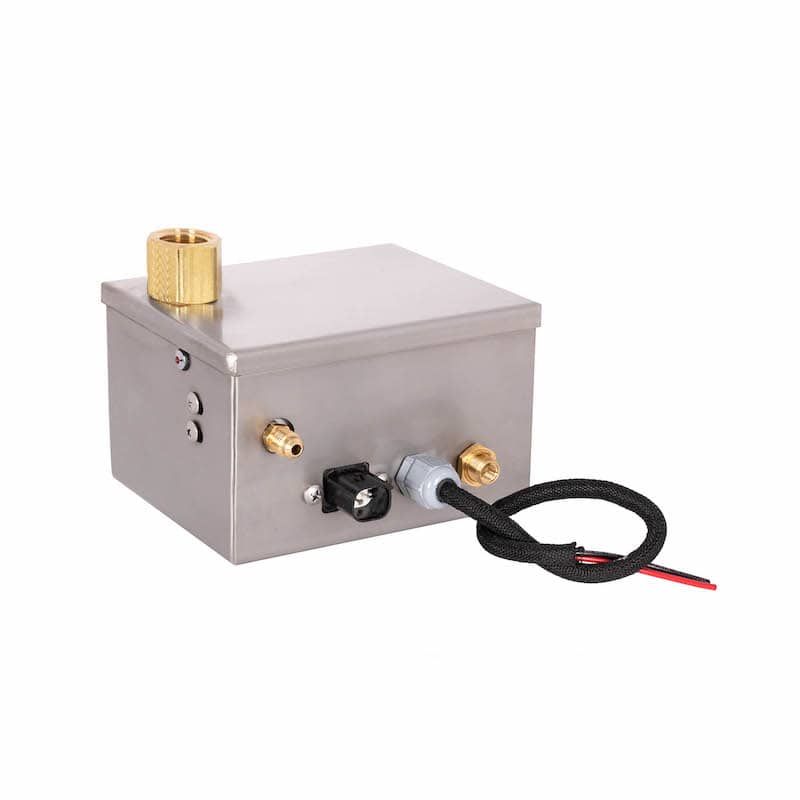

HIGH CAPACITY – ELECTRONIC IGNITION SYSTEM
Includes: Electronic Valve, Pilot Igniter, 12VAC Transformer, & Installation Manual

The Electronic Ignition System constantly monitors the flame. If the flame should extinguish then the systems makes several attempts to re-light the flame. If that fails then the unit automatically turns off the gas., thus prevent the build up of a potentially dangerous gas cloud.

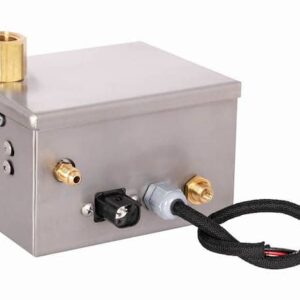

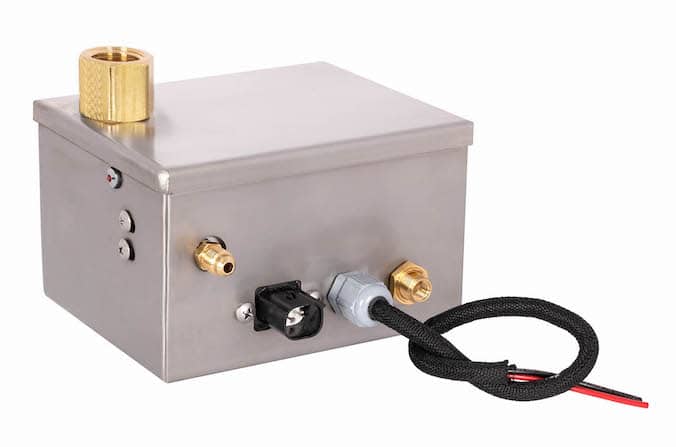

Electronic Ignition EI 500
Electronic Ignition EI 500

Specifications:
» Maximum Gas Output: 510K BTU/hr
» Inlet Gas Pressure Limit: ½ PSI
» Inlet / Outlet Size: 3/4” FIP
» Electrical Rating: 12VAC
» Hot Surface Igniter (HSI)
» Thermocouple Flame Sensor
» LED Diagnostics
» -20° – 175° Temp Range

Options:

Remote Control System
Remote Control System
Remote Control System
  1. Outdoor rated box
  2. Suitable for 110 – 12 volt only
  3. Includes Remote and Receiver, transformer and On/Off switch
  4. Not Compatible With Match Lit Systems

Bluetooth Electronic Adapter
Bluetooth Adapter
  1. Provides you with bluetooth control for all electronic ignition systems
  2. Suitable for 110VAC Only
  3. Supports iOS and Android
  4. Free Smart Phone app available

Download Manuals:

12V-Electronic-Ignition-Manual-2021

Brand

The Outdoor Plus

The Outdoor Plus ( T.O.P. ) company is rightly proud of its Made in America badge. They manufacture, by hand, all their fire pits, fire bowls, fire and water features, and burners at their 70,000 square foot facility in Ontario, California. With 75 years of experience, it is no surprise that they are among the most innovative companies in our industry. Not only with their designs, but also with the materials that they utilize. The Outdoor Plus was one of the first companies to use Glass fiber Reinforced Concrete ( GFRC ) and Corten Steel to manufacture fire pits. They are renowned for their fire and water features too. Fire and Water Bowl Across all their fire pit ranges, there is a wide variety of colors, textures, and finishes available. You would be hard-pressed not to find just what you need. If the more traditional look is what you need, the range of copper fire pits and fire bowls is stunning. However, The Outdoor Plus company is probably best known for its patented Bullet Burners.
The Outdoor Plus Bullet Burner
The Outdoor Plus Bullet Burner
These remarkable Fire Pit Burners produce a much taller flame than conventional burners and amazingly use less gas doing so! Download The Outdoor Plus catalog and take your time browsing the products and getting inspired for your project.
